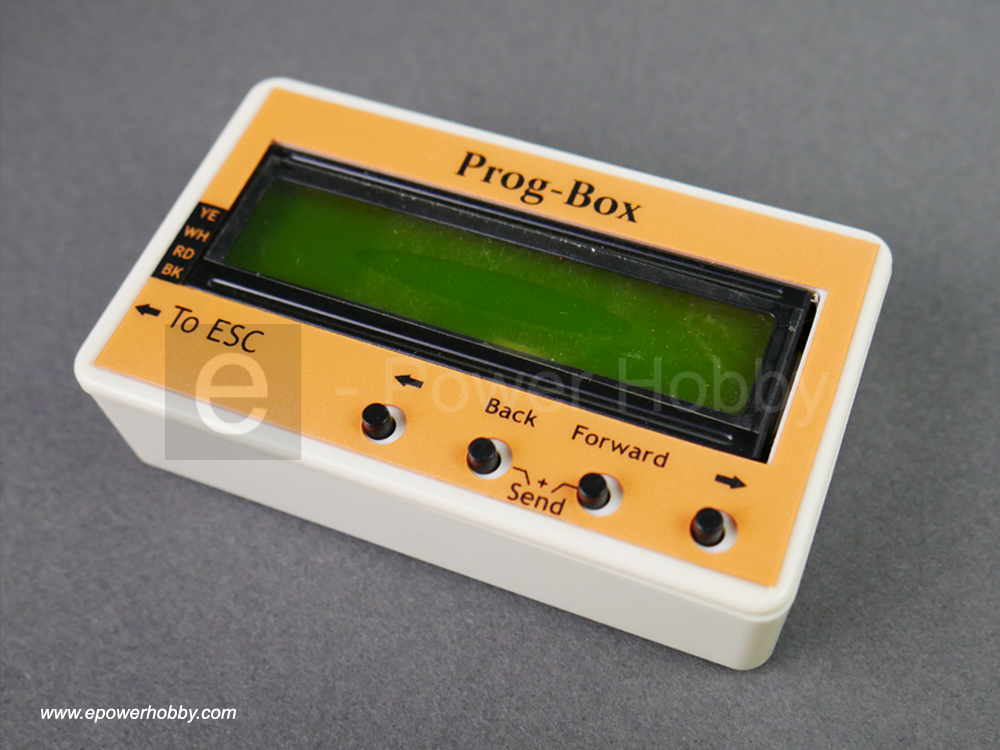

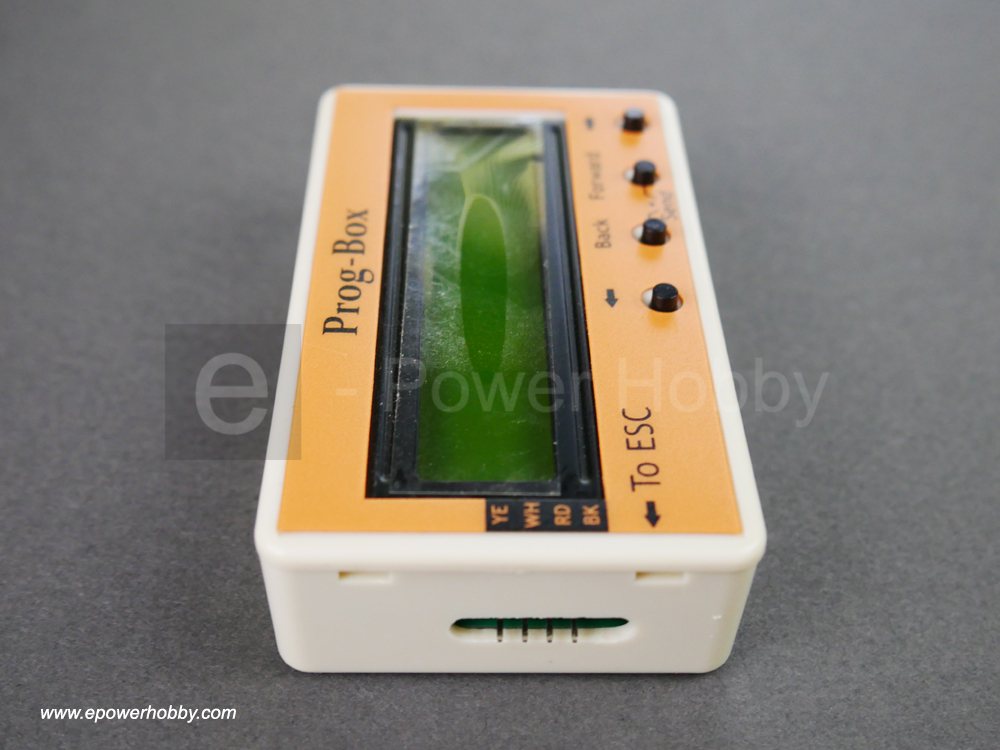

Flier Program Box

$45.00

Programming-box for ESC

Backorder

SKU: EP-PROG-BOX Categories: , ,

Description

Spec:

SIZE: 80 x 45 x 20
WEIGHT: 74g
2 x input to connect an external 5v power supply

Function Value:

ESC type: Airplane, Heli, Boat, Car
ESC Model: N° of cells
BRAKING: Off – Extra soft – Soft – Medium – Hard – Extra hard
MOTOR TIMING: 0°、1°、2°、3°、4°……30°
PWM FREQUENCY: 8 KHz – 16 KHZ – 32 KHz
ACCELERATION: Soft / Medium / Hard
BATTERY TYPE:Ni-XX、Li-XX
NUMBER OF CELLS: Auto,2,3…
LVC: soft – hard
INI POINT:Auto、fixed 1.0mS、fixed 1.1mS、fixed 1.2mS、fixed 1.3mS、fixed 1.4mS, fixed 1.5mS
END POINT:Auto、fixed 1.7mS、fixed 1.8mS、fixed 1.9mS、fixed 2.0mS
THROTTLE CURVE: Logarithmical、linear、Exponential
ROTATION:Left/Right
TIMING MONITOR:On/Off
LiFe/A123 Cutoff per cell: 2.0 – 2.1 – ….. – 2.8

Additional information

Weight 0.2 lbs
Dimensions 5 × 5 × 0.75 in

Manual for Program-Box

Download Manual for Prog-Box [PDF]
