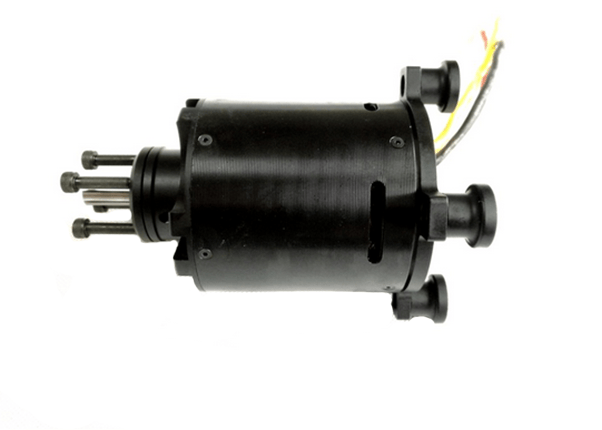

EP CA-80100 7kWt 130, 160, 230kv Brushless Outrunner (50~80cc)

$240.00

Quick Details

Model Number: MP S-80100 KV130
Usage: Boat, Car, Electric Bicycle, Home Appliance, Electric boat
Certification: CE, ROHS
Type: Giant brushless motor
Torque: High Torque
Construction: Permanent Magnet
Commutation: Brushless
Protect Feature: Explosion-proof
Continuous Current(A): 75A
Output Power: 7100w
Voltage(V): 18s
Efficiency: 88%
Shaft: 10/12mm
No load current: 2.0
Max volt: 18s
Watt: 7100w
Thrust: 11.5kg
Stator size: 68*50mm
Max amp: 200A
ESC: 200/250A

Backorder

Add to Wishlist
Add to Wishlist
Categories: ,
Compare

Description

New version MP CA-80100 7kw for 17~30lb Sport, Scale and 3D planes .

MOTOR: MP 80100
KV: 130, 160, 230 (any possible kv can be acheived here)
POWER: 7000W
WIRE WINDS: 8D
MAX AMP: 200A
ESC: 250/300A
MAX VOLT: 18S
NO LOAD CURRENT: 2,0
SIZE: 80 x 100 ( without shaft )
WEIGHT: 1.980g
SHAFT: 10/12mm with 3mm KEYWAY

Accessory pack: Yes

Efficiency: 88%

We can supply different motors, with custom power and KV, and sensor board.

Designed as a 50 to 80cc gas engine replacement, this motor is a direct bolt in for 17~30lb Sport, Scale and 3D planes .
A perfect size motor for 3D flight up to 20lbs.
The motor is very well built with strong mounts, end bell and a concentric double bearings at the rear to support large propellers and rotating can, especially during hard 3D flight.

This motor is very well engineered and of the highest quality.
The factory can produce only a limited number of these motors per month due to the increased time in balancing and machining such a large object.
